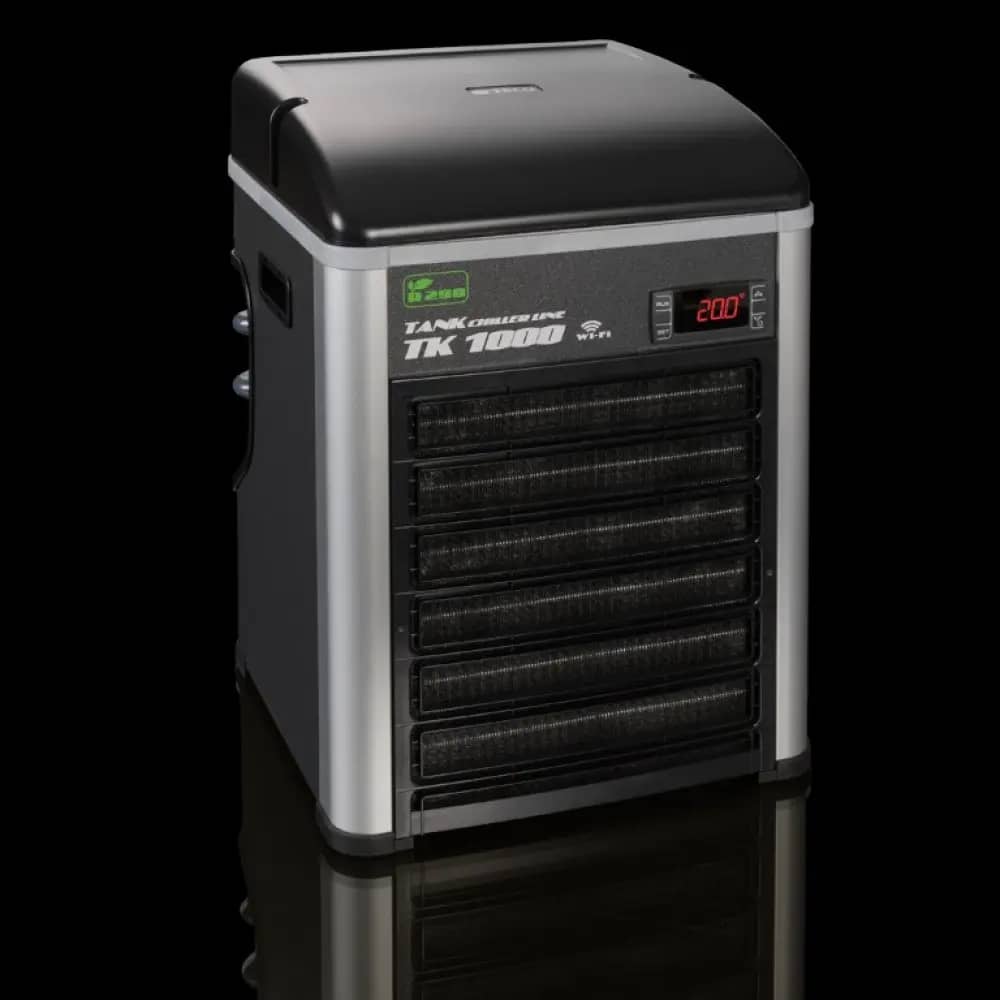

TECO TK-1000H Aquarium Chiller & Heater

TECO TK-1000H Aquarium Chiller & Heater – Advanced Temperature Control for Large Aquariums

TECO TK-1000H is a high-performance aquarium temperature control system designed for demanding freshwater and marine aquarium applications. It combines an efficient cooling system with integrated heating functionality to maintain stable water temperatures throughout the year.

The TK-1000H uses advanced compressor technology, a titanium coaxial heat exchanger, and environmentally friendly R290 refrigerant to provide efficient cooling performance with reduced power consumption. The digital thermostat allows accurate temperature adjustment, while the professional build quality ensures reliable operation for large aquarium systems.

Specifications

• Product Name: TECO TK-1000H Aquarium Chiller & Heater
• Recommended Aquarium Size: Up to 1000 litres
• Cooling Power Consumption: 315W
• Heating Power: 300W / 310W
• Cooling Capacity: 630W
• Refrigerant: R290
• Heat Exchanger: Titanium coaxial
• Temperature Display: Digital thermostat
• Water Temperature Range: 5°C – 30°C
• Ambient Temperature Range: 10°C – 38°C
• Minimum Water Flow: 500 L/H
• Maximum Water Flow: 800 L/H
• Maximum Pressure: 1 bar
• Air Flow: 160 m³/h
• Power Supply: 230V – 50Hz / 115V – 60Hz
• Water Connection: 3/4 inch connection with 16mm internal hose diameter
• Dimensions: 310 × 310 × 458 mm
• Weight: 19.7 kg

Performance Details

How to Use This Aquarium Chiller & Heater

1. Place the TECO TK-1000H in a well-ventilated location.
2. Connect the water inlet and outlet hoses securely.
3. Ensure the aquarium water flow meets the recommended range.
4. Connect the power supply.
5. Set the required temperature using the digital thermostat.
6. Monitor operation and allow the unit to stabilise aquarium temperature.

Care & Maintenance Tips

• Maintain recommended water flow for efficient performance.
• Keep ventilation openings free from dust and obstruction.
• Clean external surfaces regularly.
• Check hose connections periodically for leaks.
• Ensure adequate space around the unit for airflow.
• Follow regular aquarium maintenance routines.
